High Output Bullet Tweeter
High Output Bullet Tweeter
High Output Bullet Tweeter
High Output Bullet Tweeter
High Output Bullet Tweeter

High Output Bullet Tweeter

SKU

53-1075

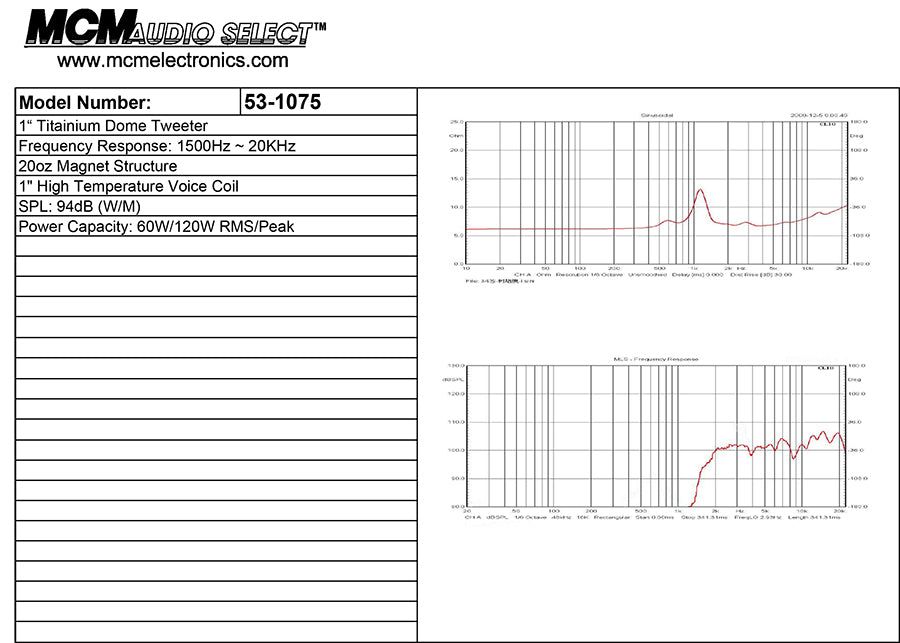

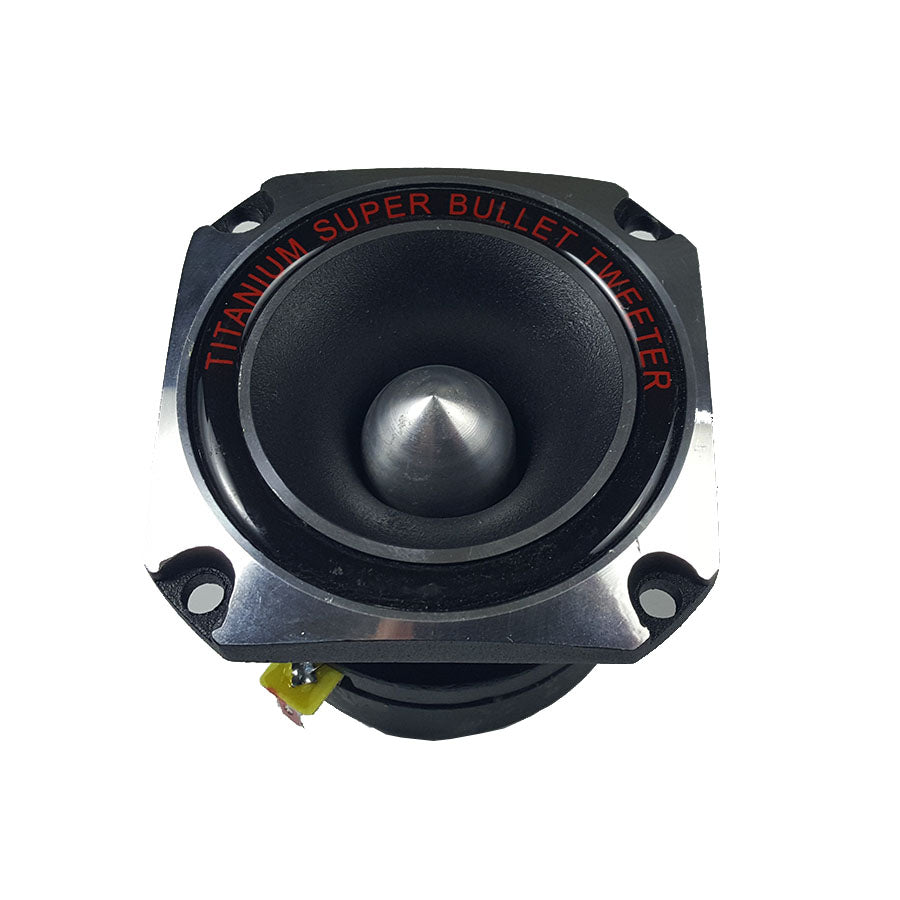

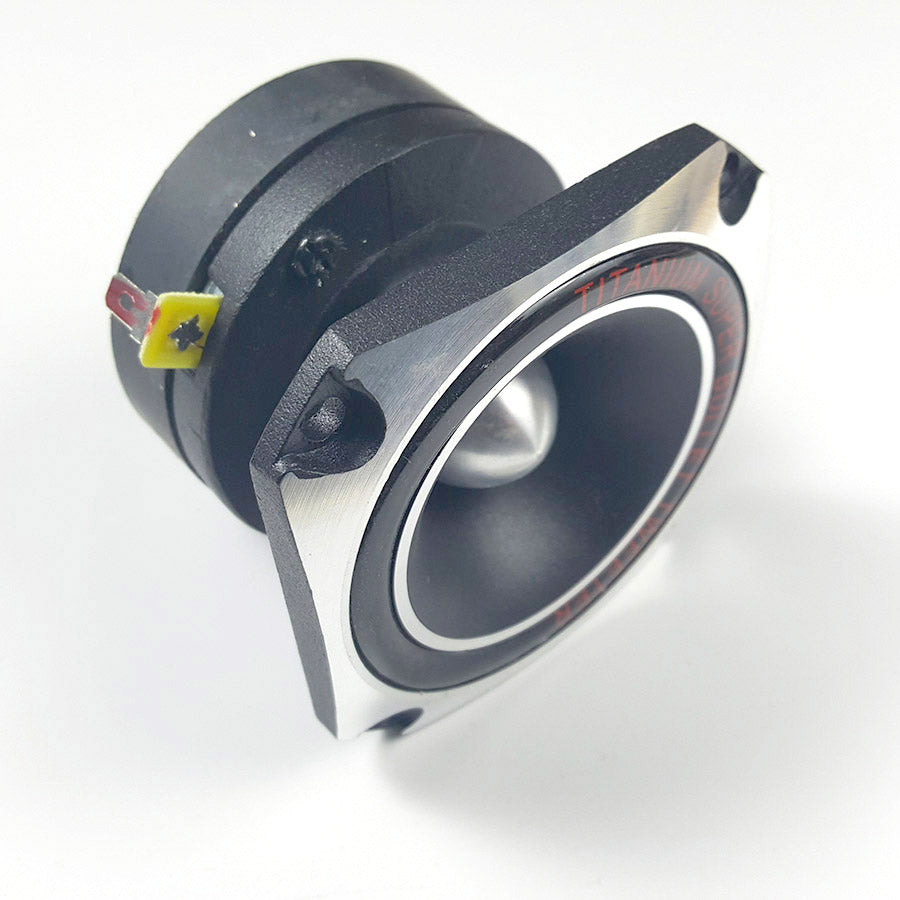

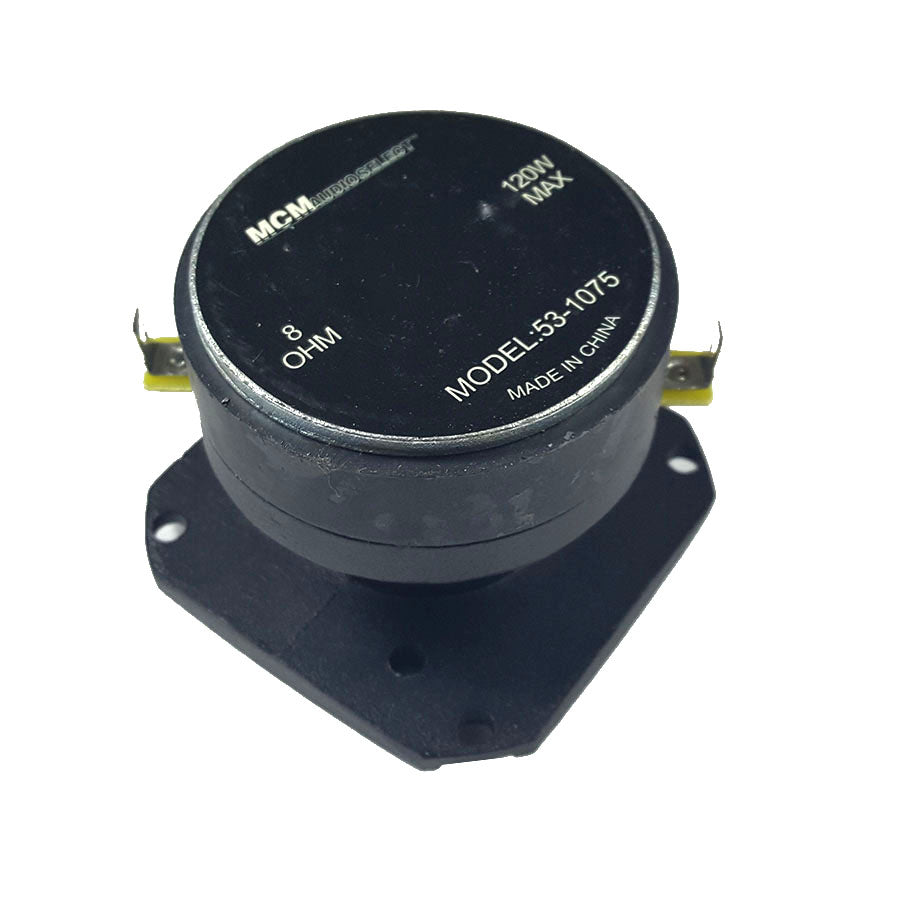

A titanium 1" voice coil dome tweeter coupled to a "bullet" style horn assembly used for high frequency reproduction in PA speakers. The frequency response extends down to 1.5kHz but the recommended crossover frequency for best reliability is 5kHz. Connection via Faston connectors or solder.

  • 120 watt peak power
  • 8 ohms
  • 96dB output @ 1 watt, 1 metre
  • Cast aluminium horn assembly
  • Mounting flange 80x80mm
  • 4x 5mm mounting holes at 62mm centres
  • Panel cutout 70mm dia (not allowing for the connector tabs)
  • Weight 0.7kg.
