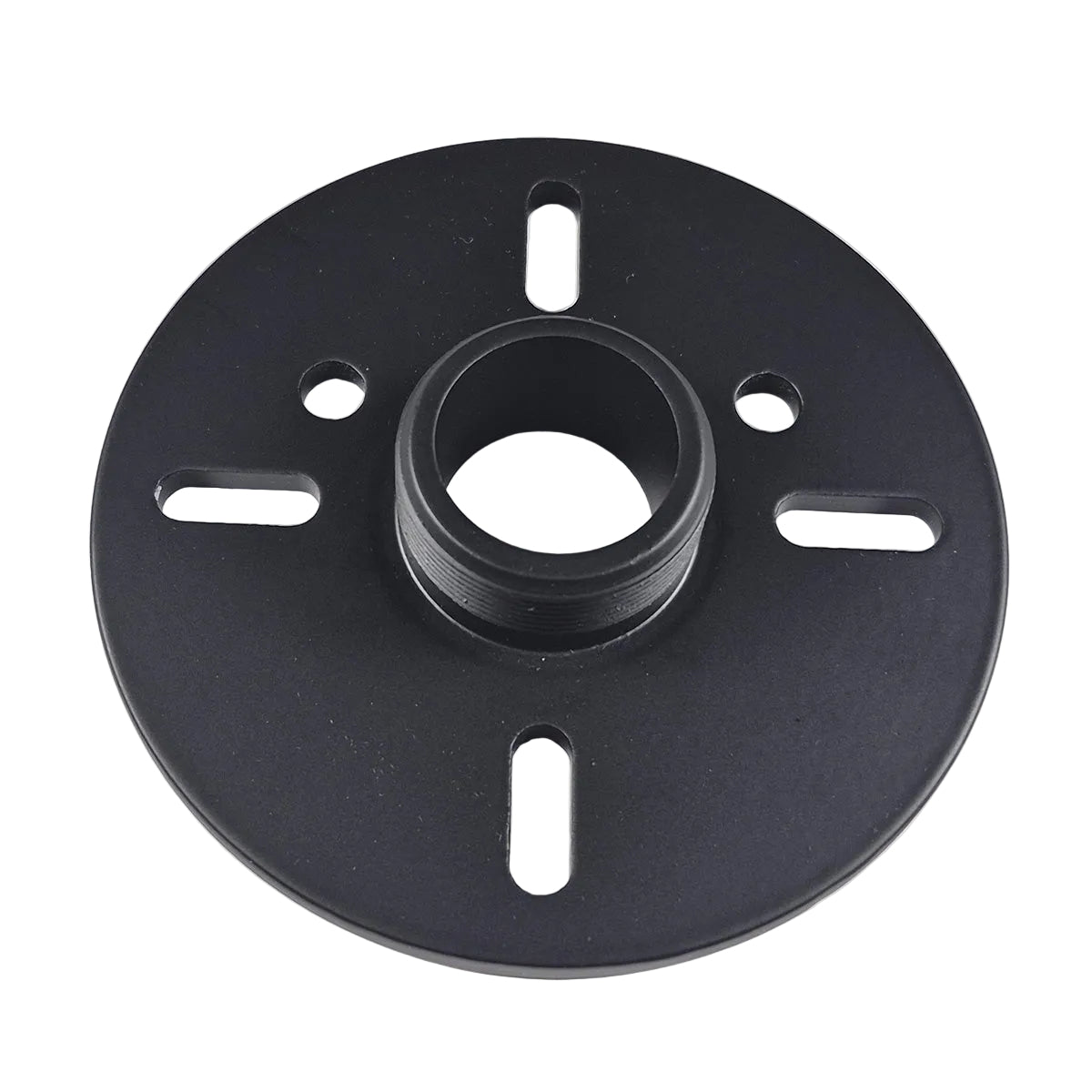

Compression Driver 35mm Thread Adaptor Plate

This adaptor plate fits onto most bolt on compression drivers with a 1" (25.4mm) diameter exit and provides a standard 35mm thread to fit onto threaded horn flares.  The adaptor is made from aluminium with a strong 3mm base plate so it can support heavy horn drivers.  The universal mounting slots will accept M6 bolts (and M4 bolts if flat washers are used).

• Matches with most 1" exit horn drivers
• Aluminium material
• Standard M35 thread
• Thread length = 18mm
• Plate outside diameter = 102mm
• M6 mounting slots for 52mm to 88mm bolt circle range
