3 Way 750/5000Hz Passive Speaker Crossover

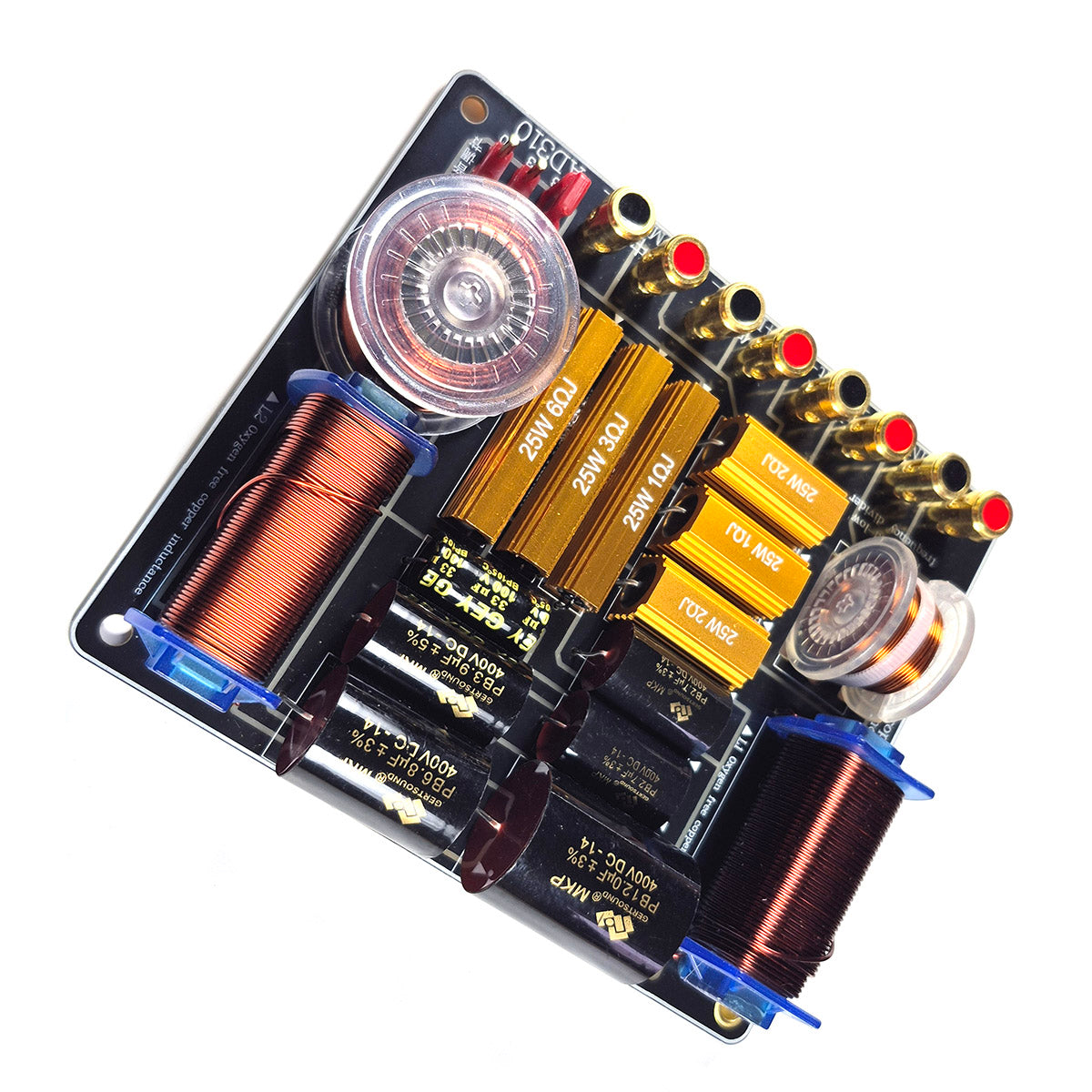

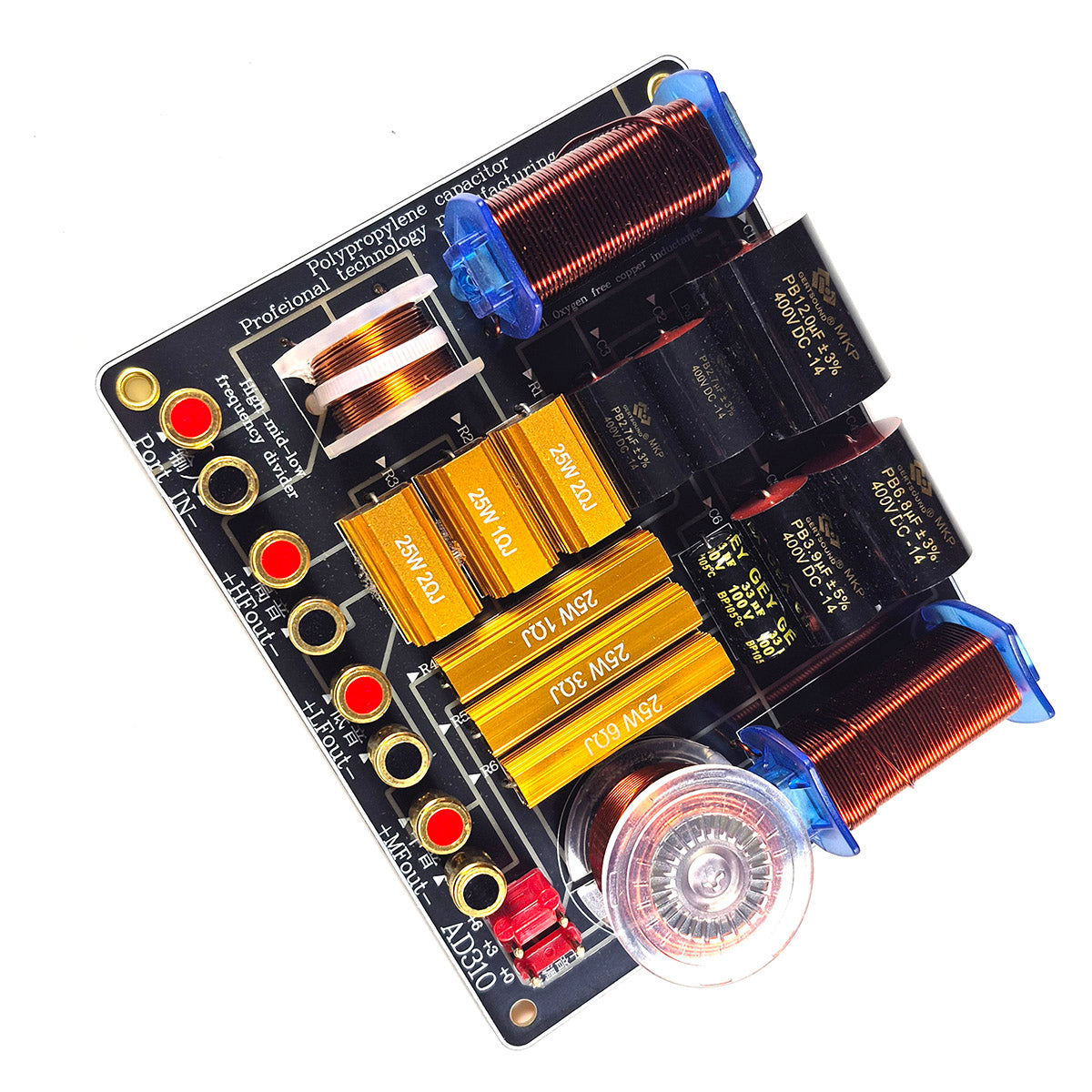

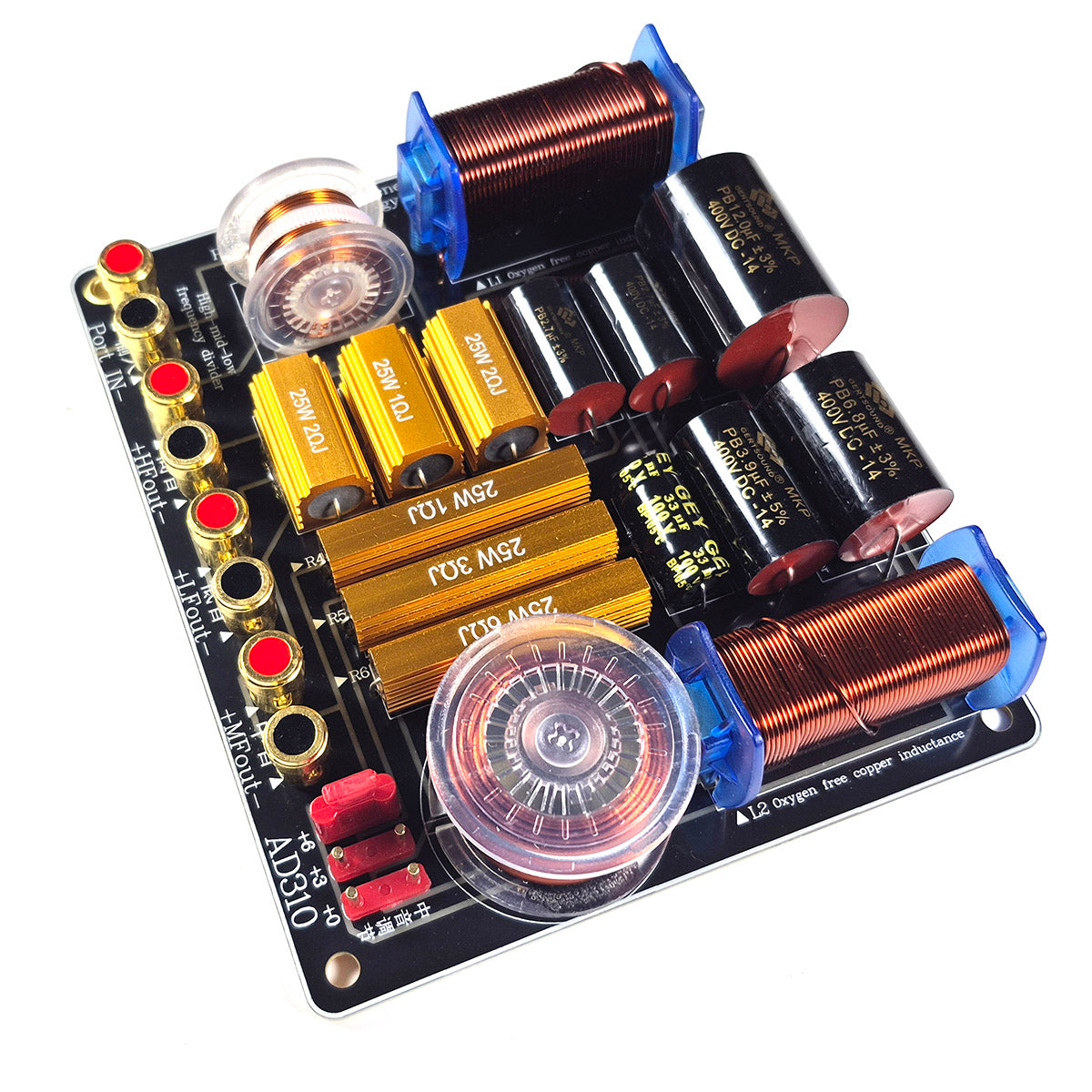

A well designed three way passive crossover for hi-fi loudspeaker projects with 12dB per octave filters at 750Hz and 5kHz. The crossover features heavy duty iron and air core chokes, quality film capacitors and has been expertly assembled. The mid band output can be set to 3 levels of attenuation by moving the red jumper plug. Recommended for 6 and 8 ohm drivers.

• 150W RMS power
• 12dB/oct filter slopes

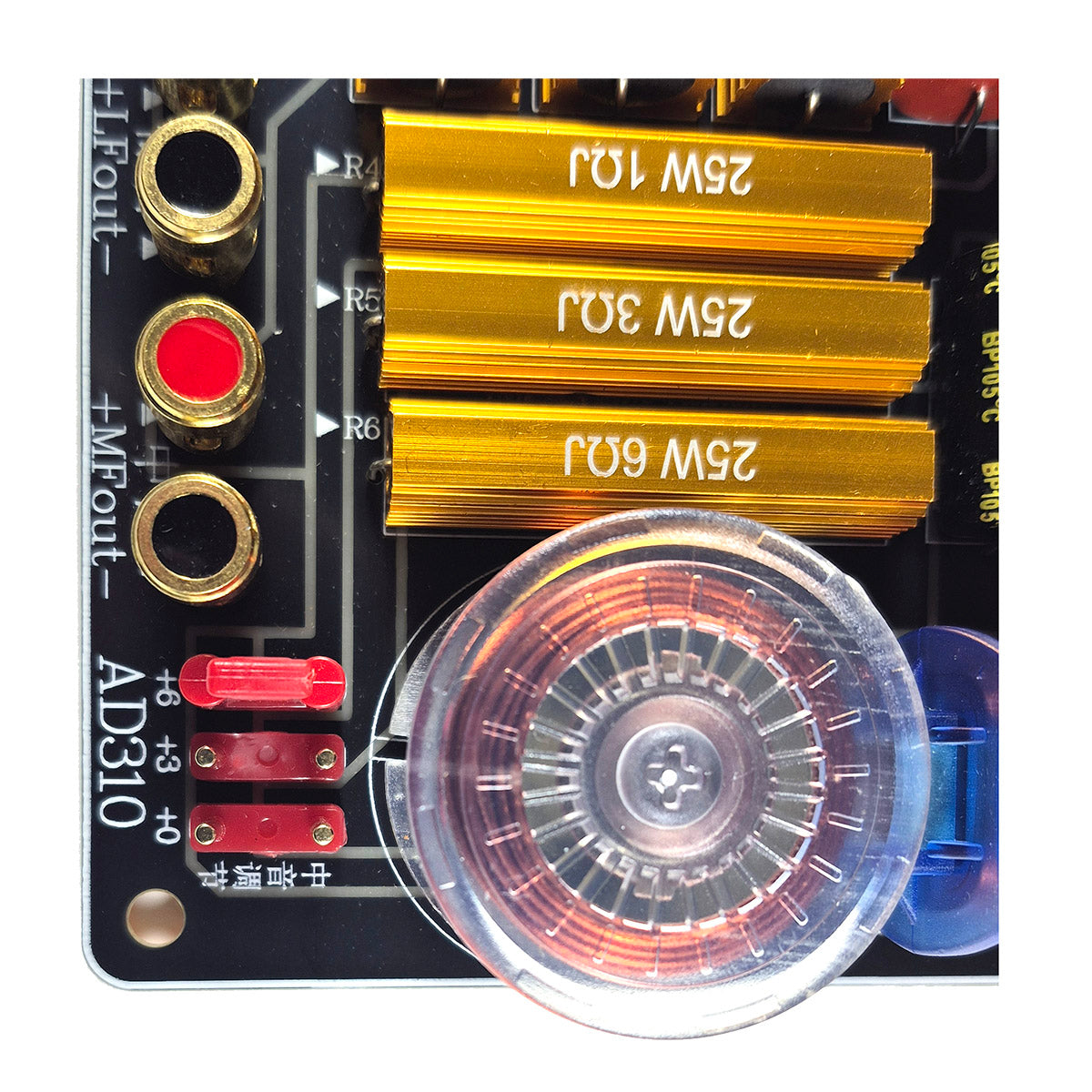

• 3 position mid band level adjustment, 0dB, +3dB, +6dB

• Fixed 5dB tweeter attenuation to match woofer
• Push button clamping wire connectors
• Excellent quality components and build
• Mounting standoffs included
• Dimensions = 160x135mm
