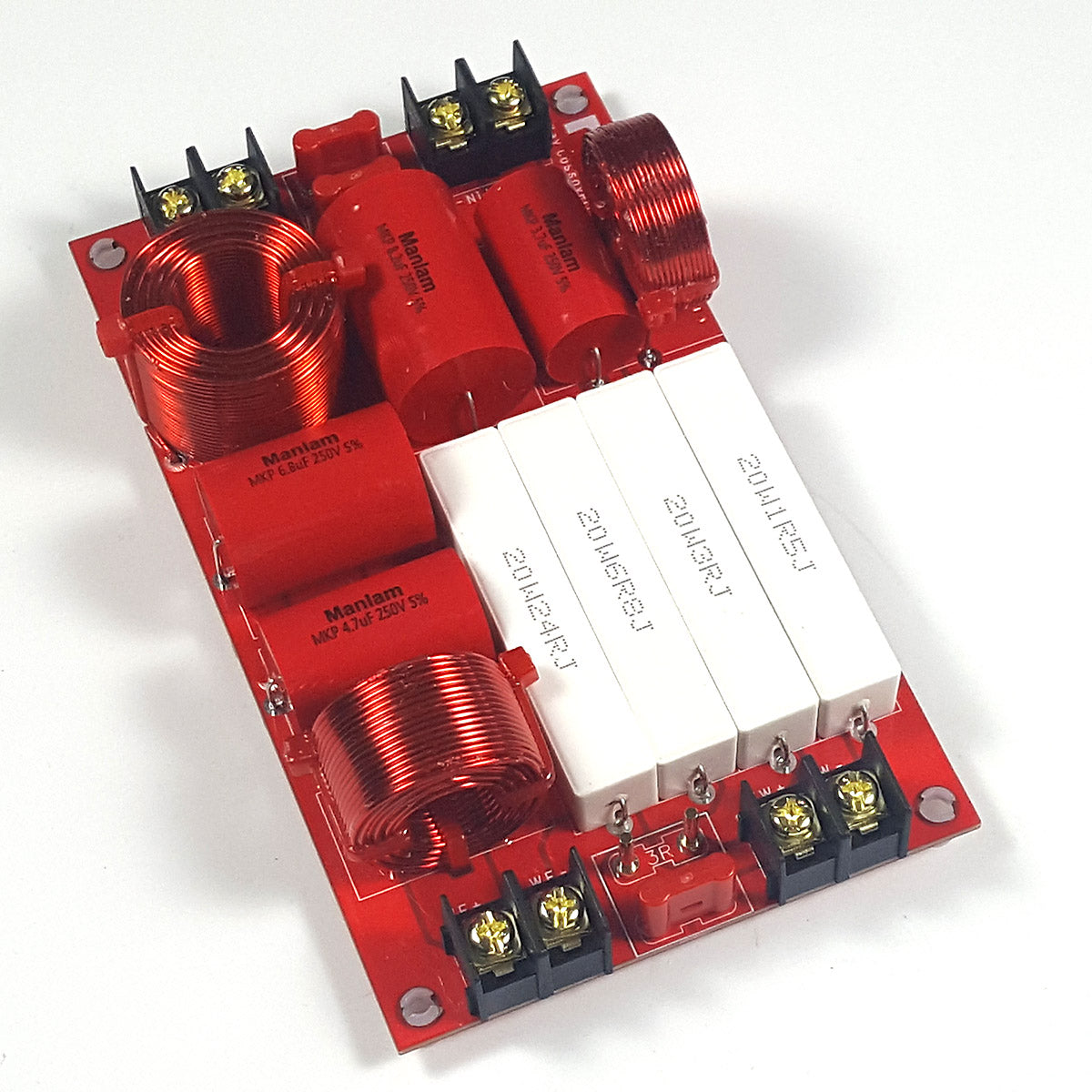

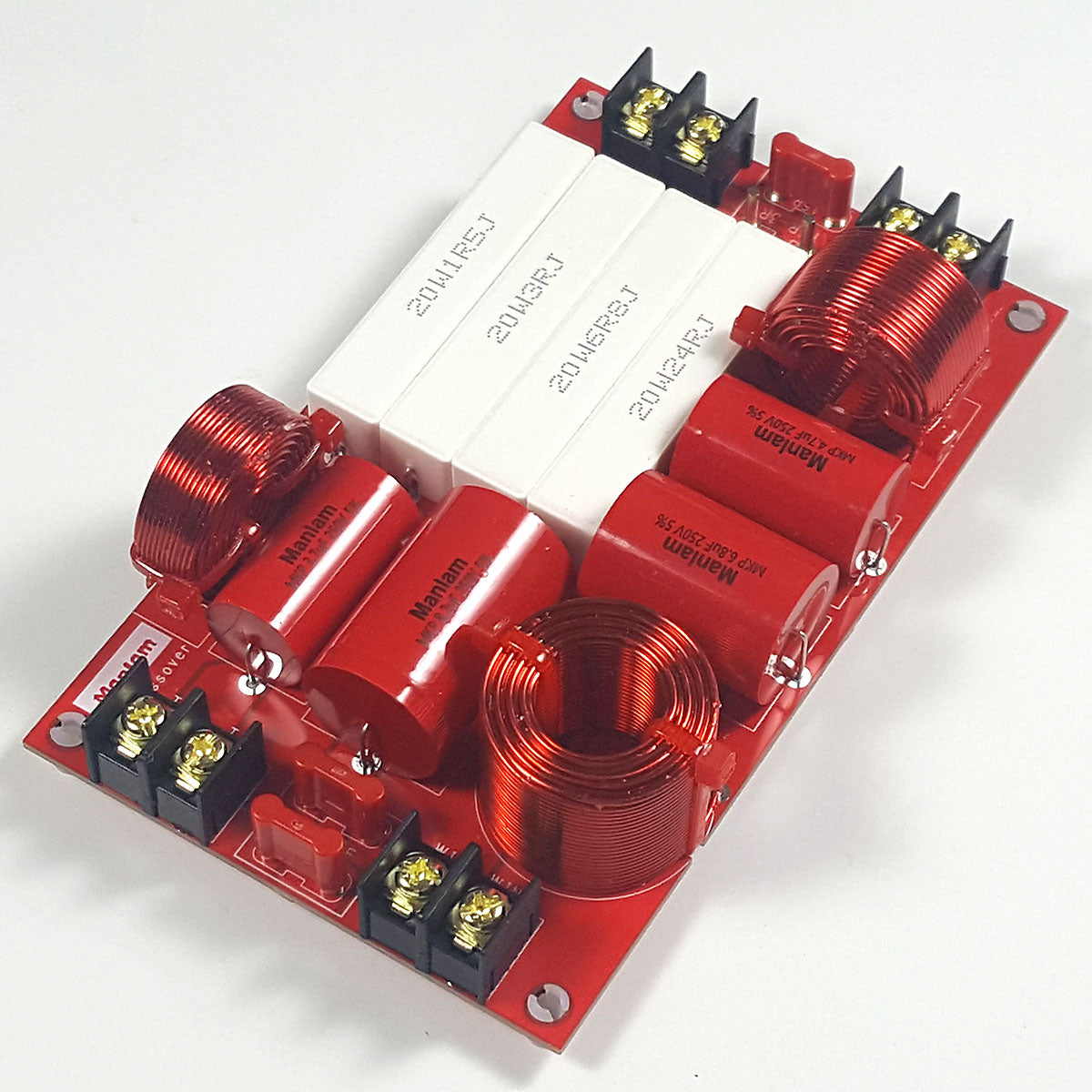

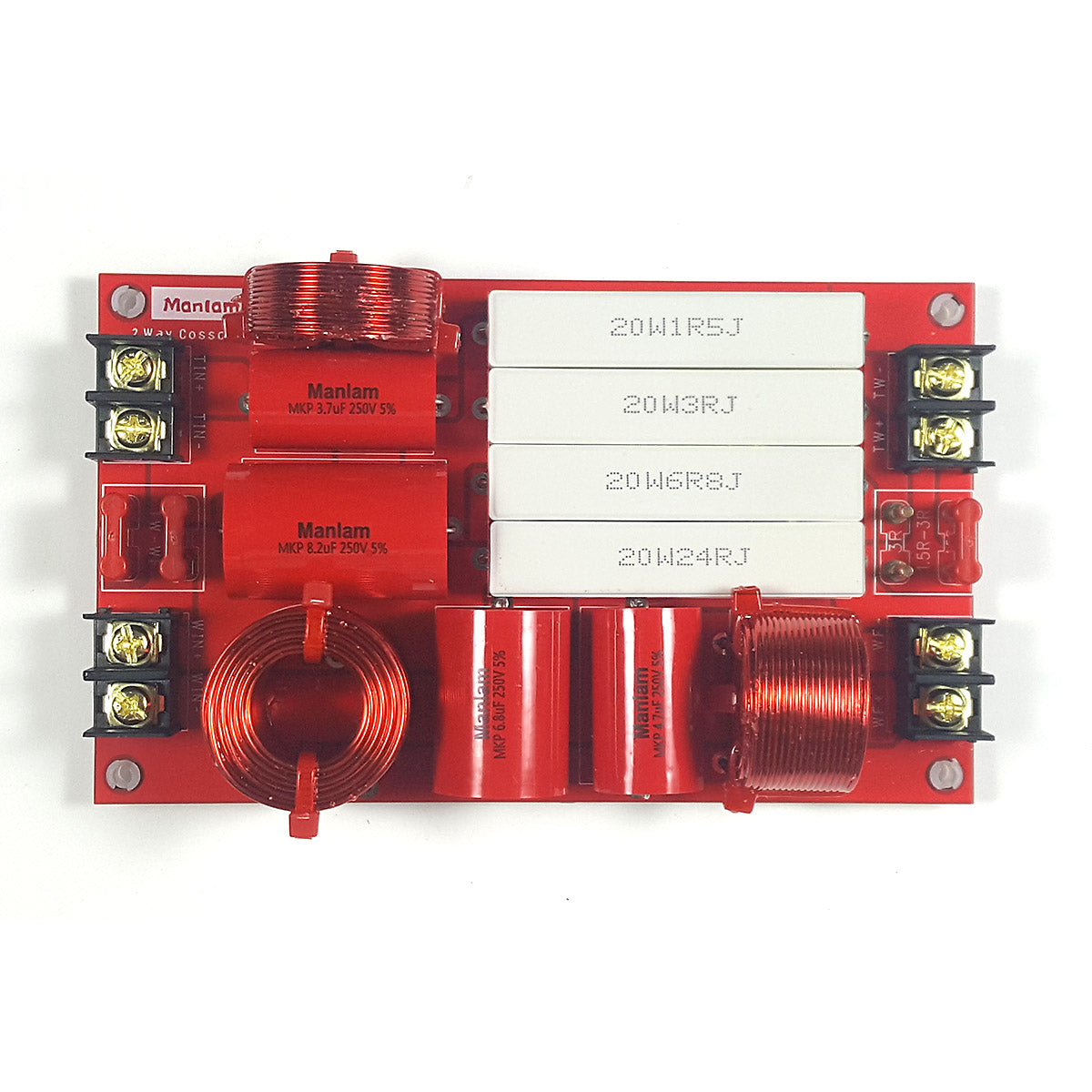

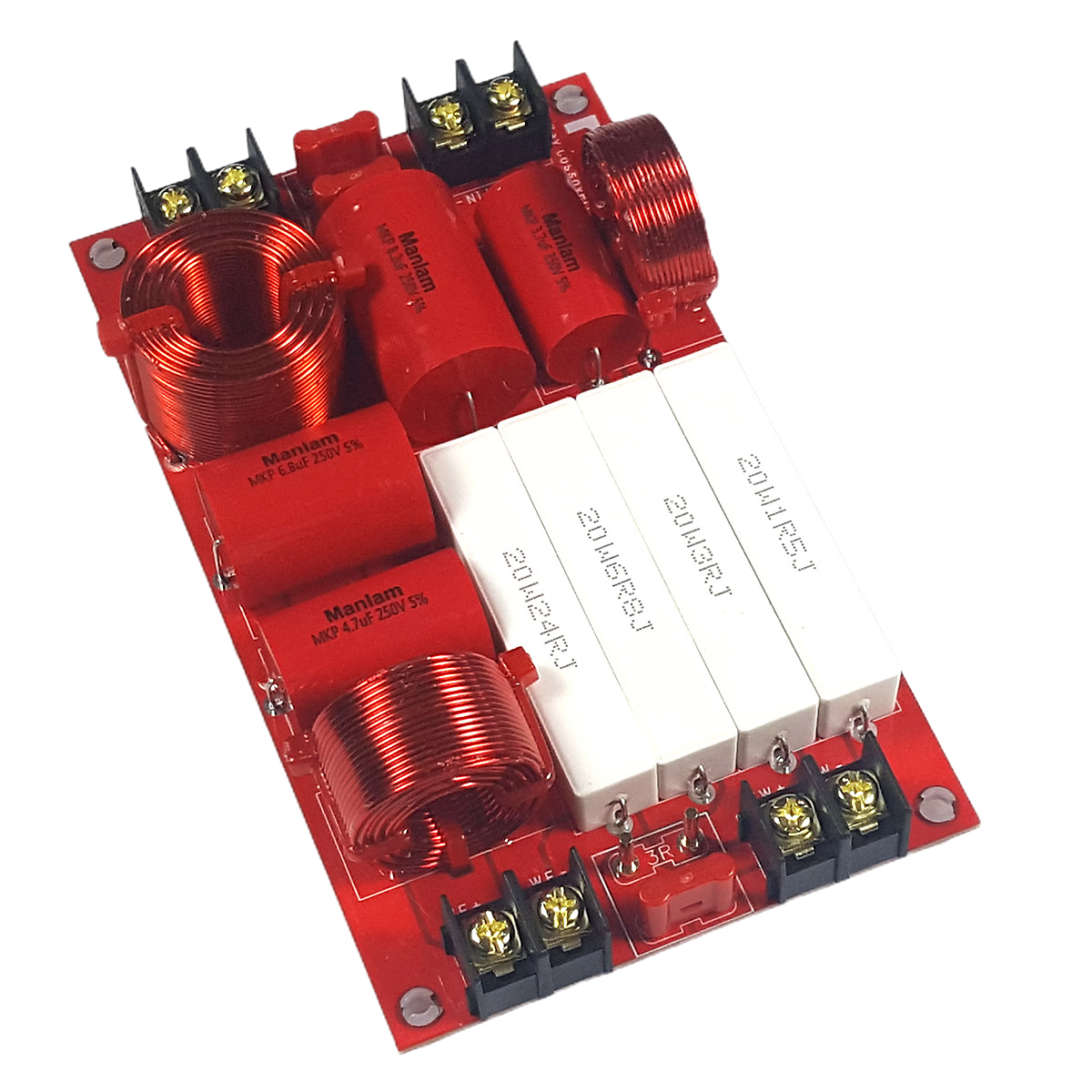

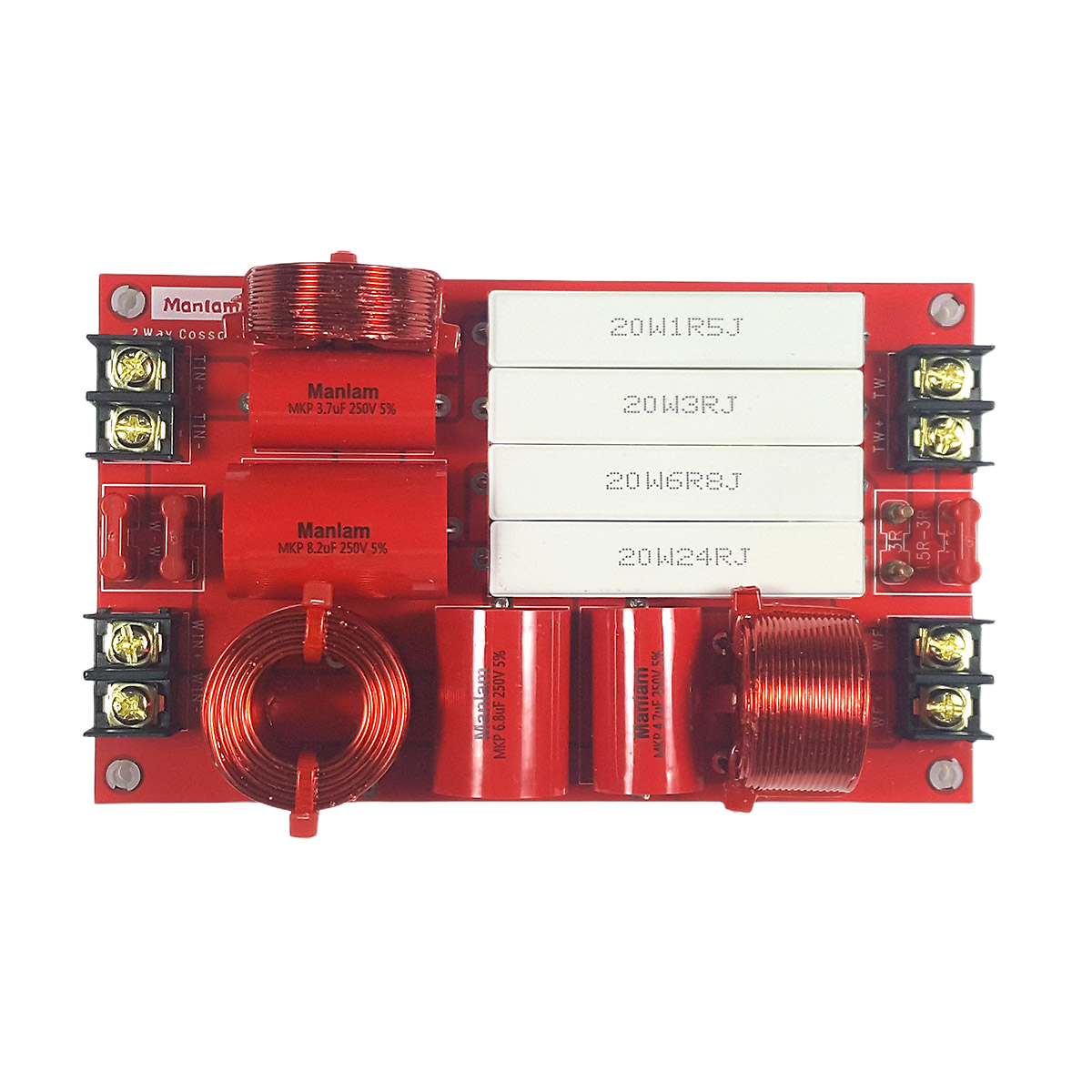

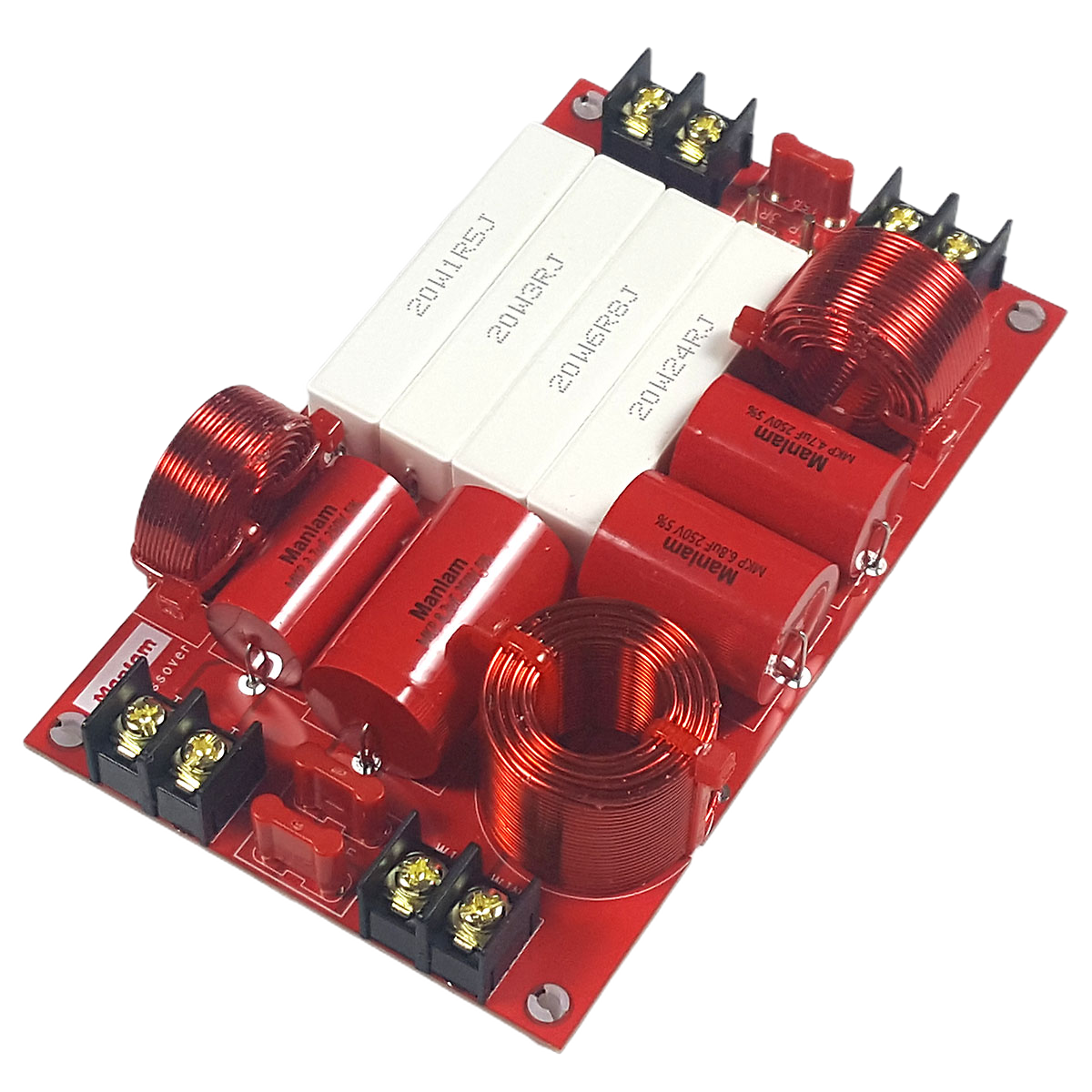

2 Way 3000Hz Passive Speaker Crossover

A very good quality two way passive crossover for hi-fi woofer and tweeter loudspeaker build projects with tight 18dB per octave filter slopes at 3kHz. A constant impedance Zobel network across the woofer output ensures the crossover will work correctly with most woofer types including 8 or 4 ohm.  The crossover features air cored chokes and quality film capacitors. The high frequency (tweeter) output can be set via jumper plugs to 2 levels of attenuation against the low frequency output to match relative volumes. The input can be set for bi-wiring, ie, separate inputs for tweeter and woofer filters.

• 200W RMS power
• 18dB/oct slopes at 3kHz
• 2 position high frequency attenuation via jumpers
• Good for 8 or 4 ohm woofers
• Air cored inductors for zero signal saturation
• Optional bi-wire input
• Screw terminal connections
• Mounting kit with standoffs included
• Excellent quality parts and build
• Dimensions = 150mm x 90mm
