2 Way Passive Speaker Crossover - 1.8kHz

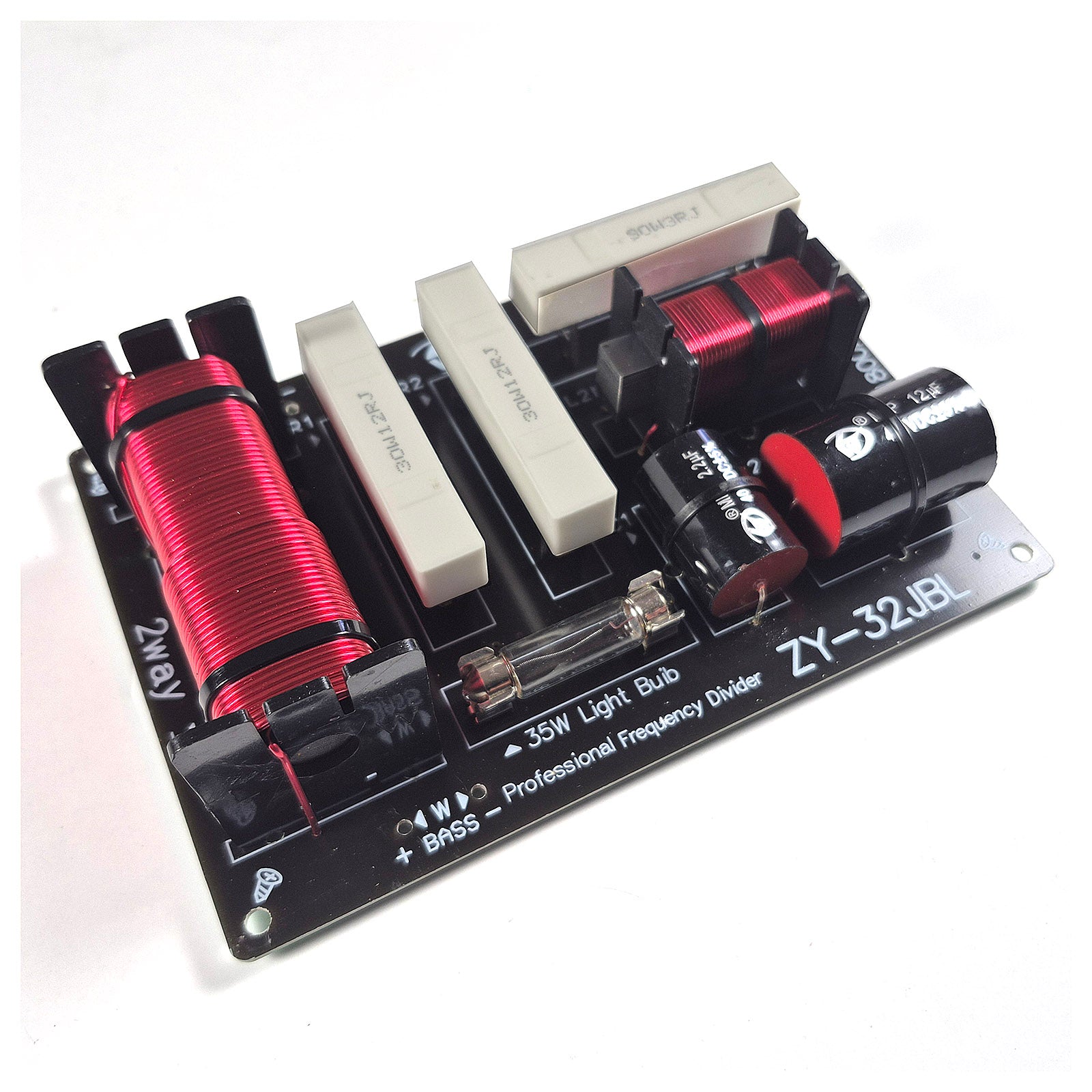

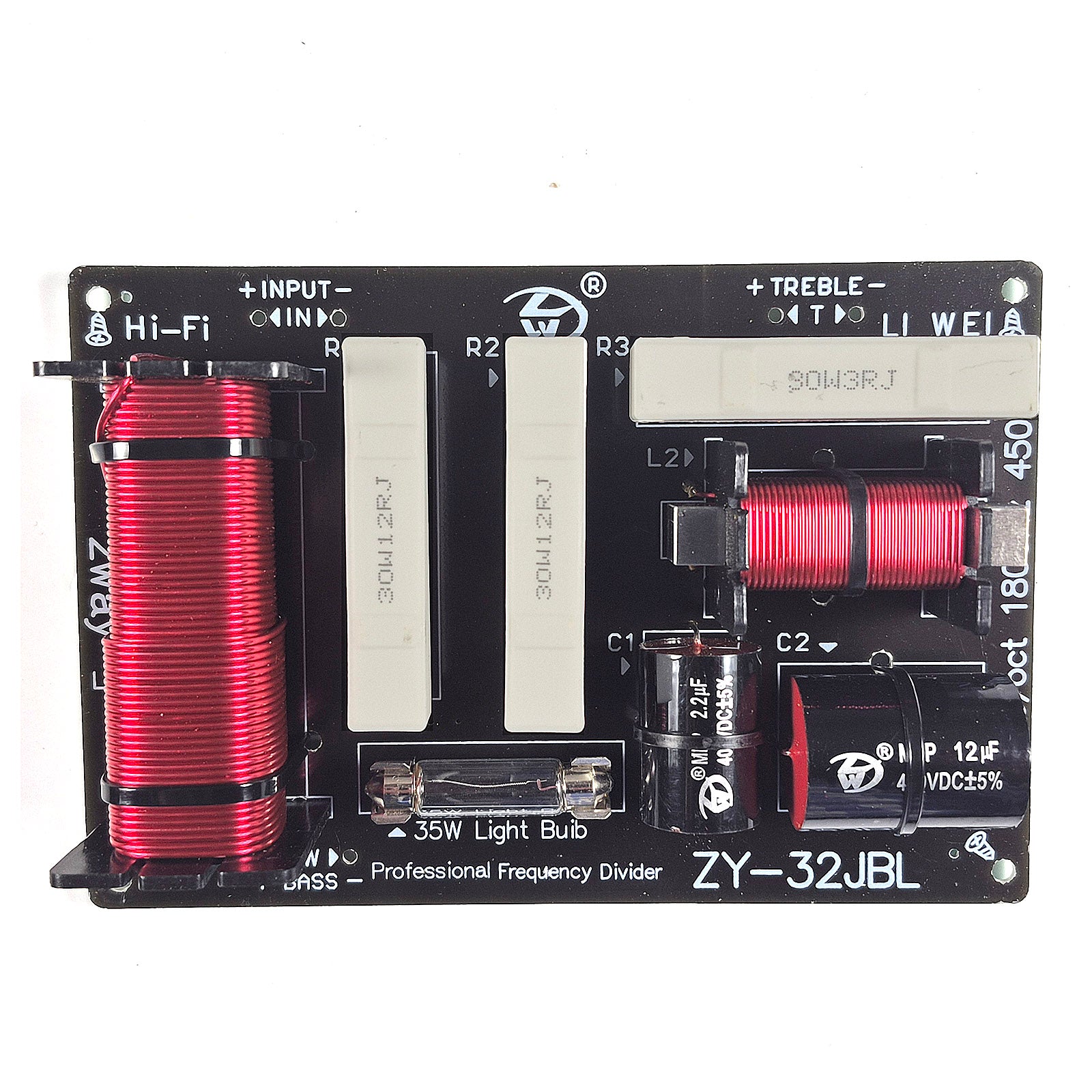

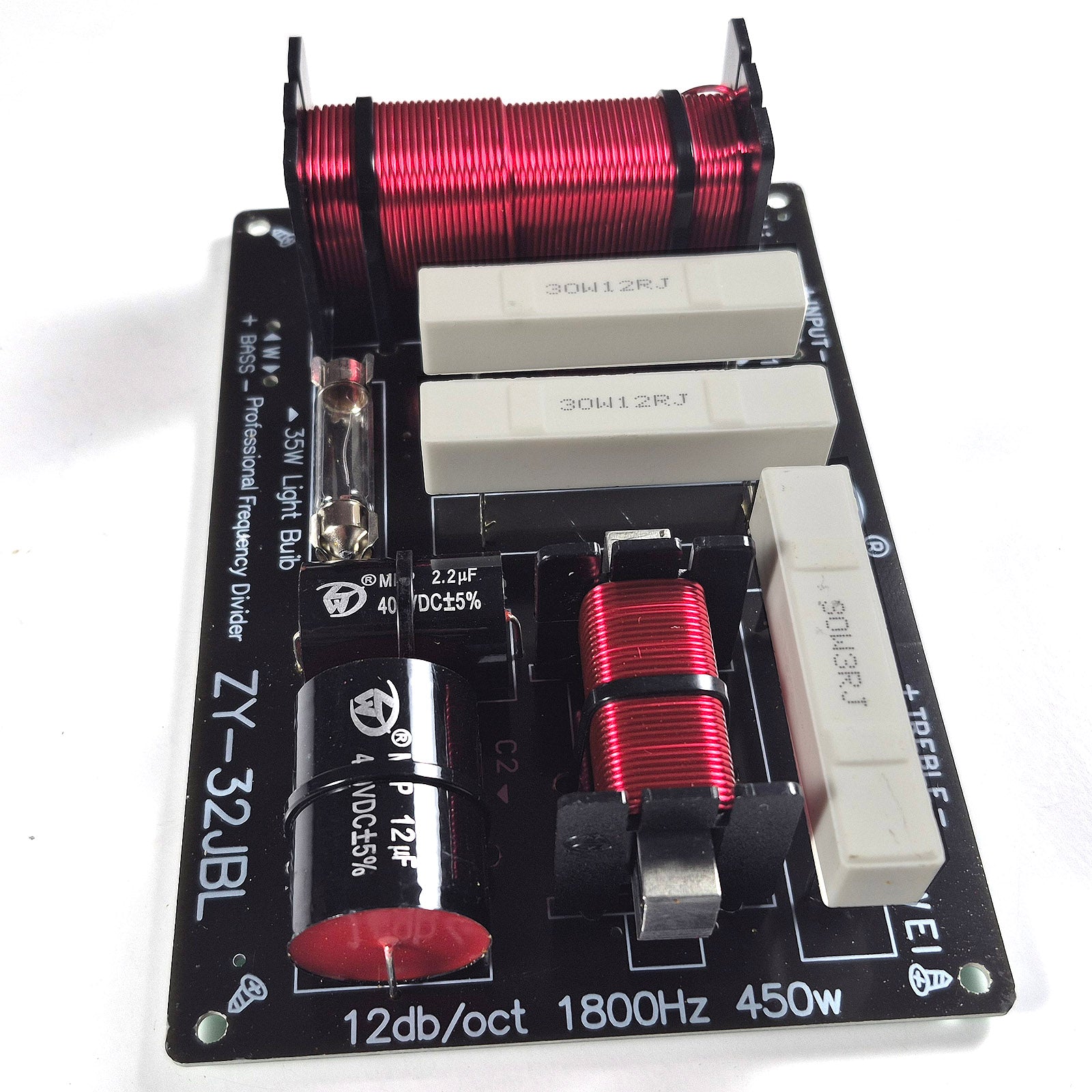

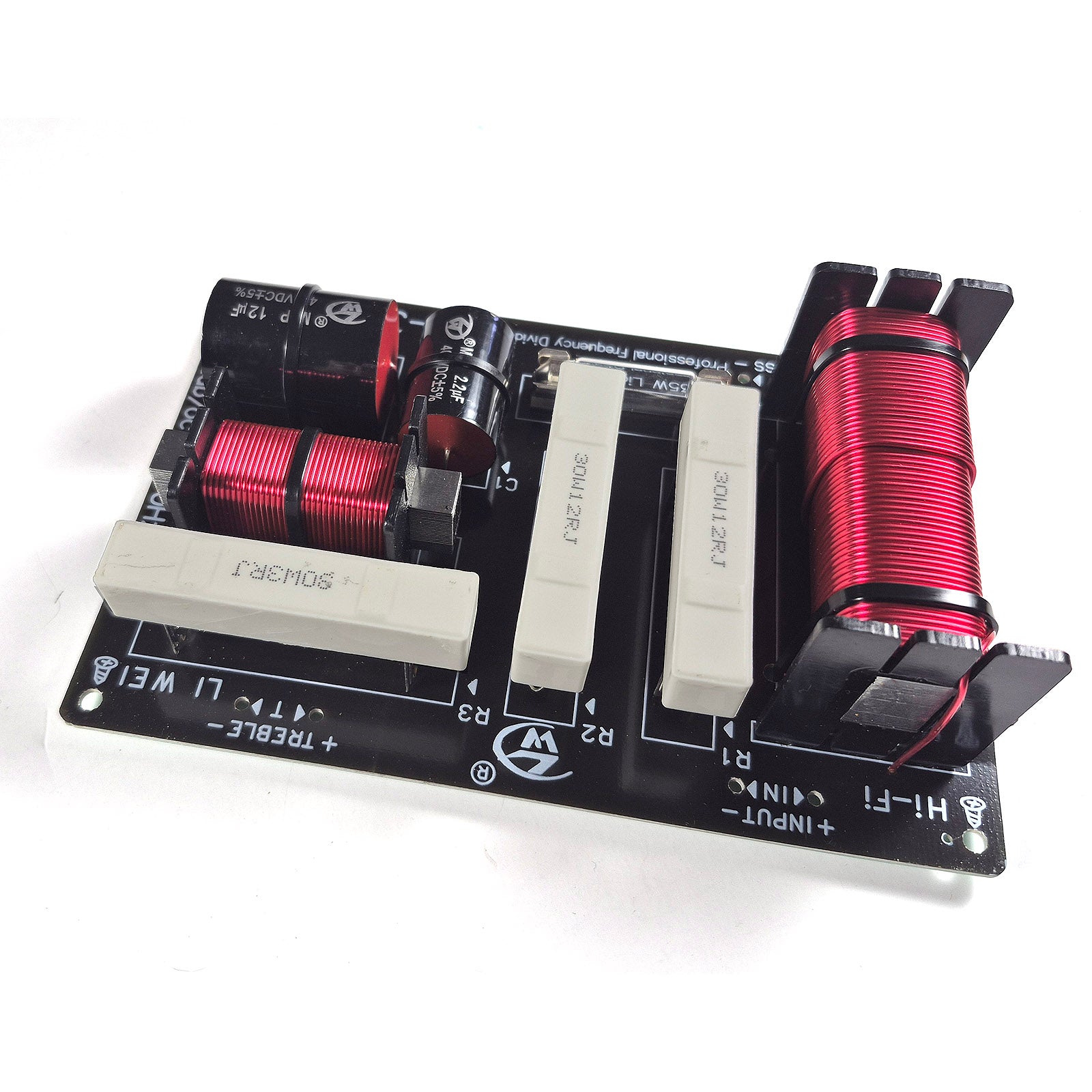

This high power 2 way 1800Hz passive crossover is useful for building DIY 2 way PA speaker cabinets.  The 1.8kHz crossover point is a good choice for vocal speakers using 10, 12 or 15 inch woofers and horn drivers.  The chokes are wound with heavy gauge wire for low loss and the treble (horn) output is protected by a light bulb over-current limiter arrangement (which can be solder bypassed if not desired). This crossover can also be used for hi-fi speaker applications.

• 450W power rating
• 12dB per octave filter slope
• Best for 8 ohm drivers
• Perfect for DIY 2 way FOH and foldback speaker designs
• Soldering required to connect wires to the circuit board
• Dimensions = 170mm x 115mm
