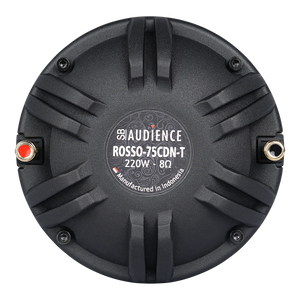

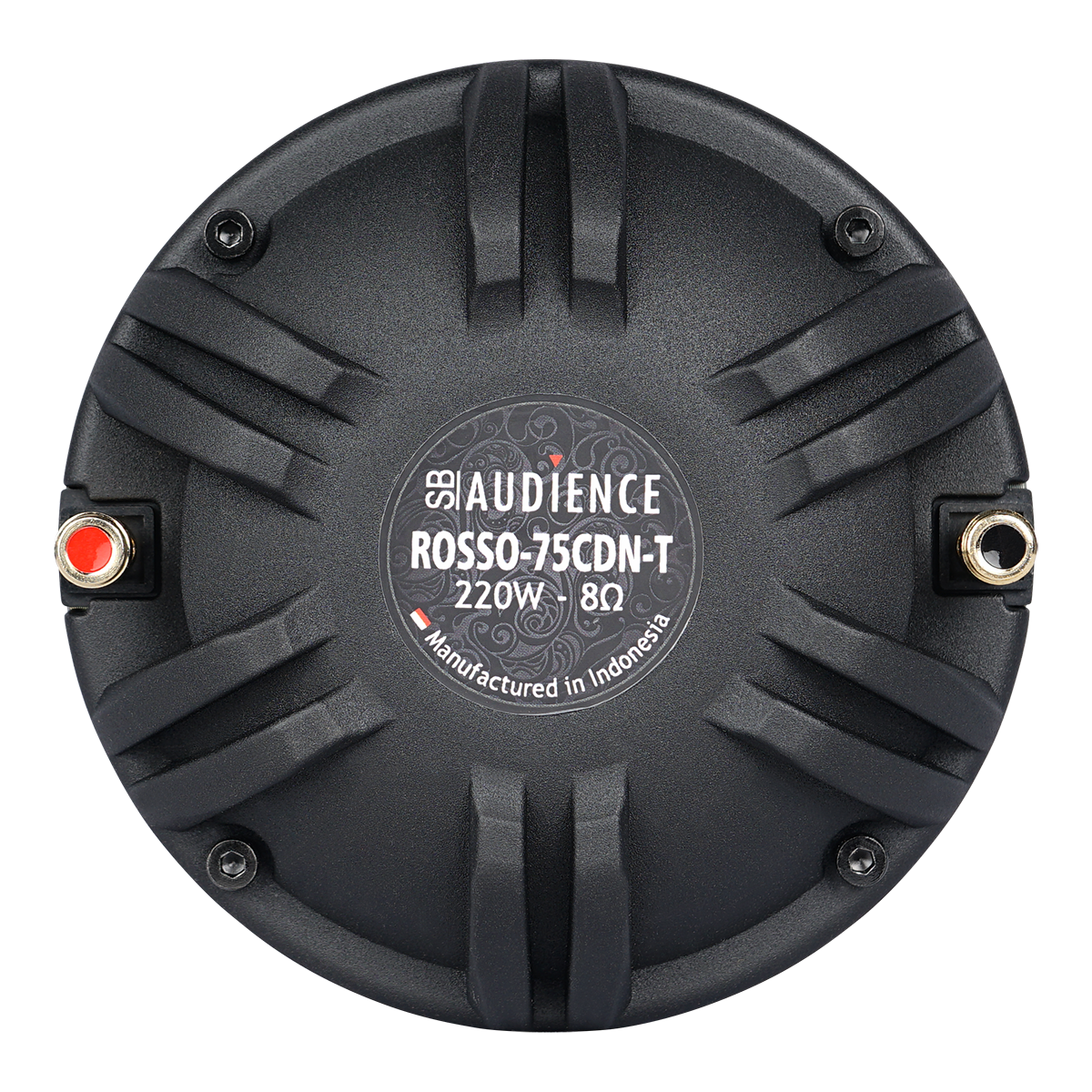

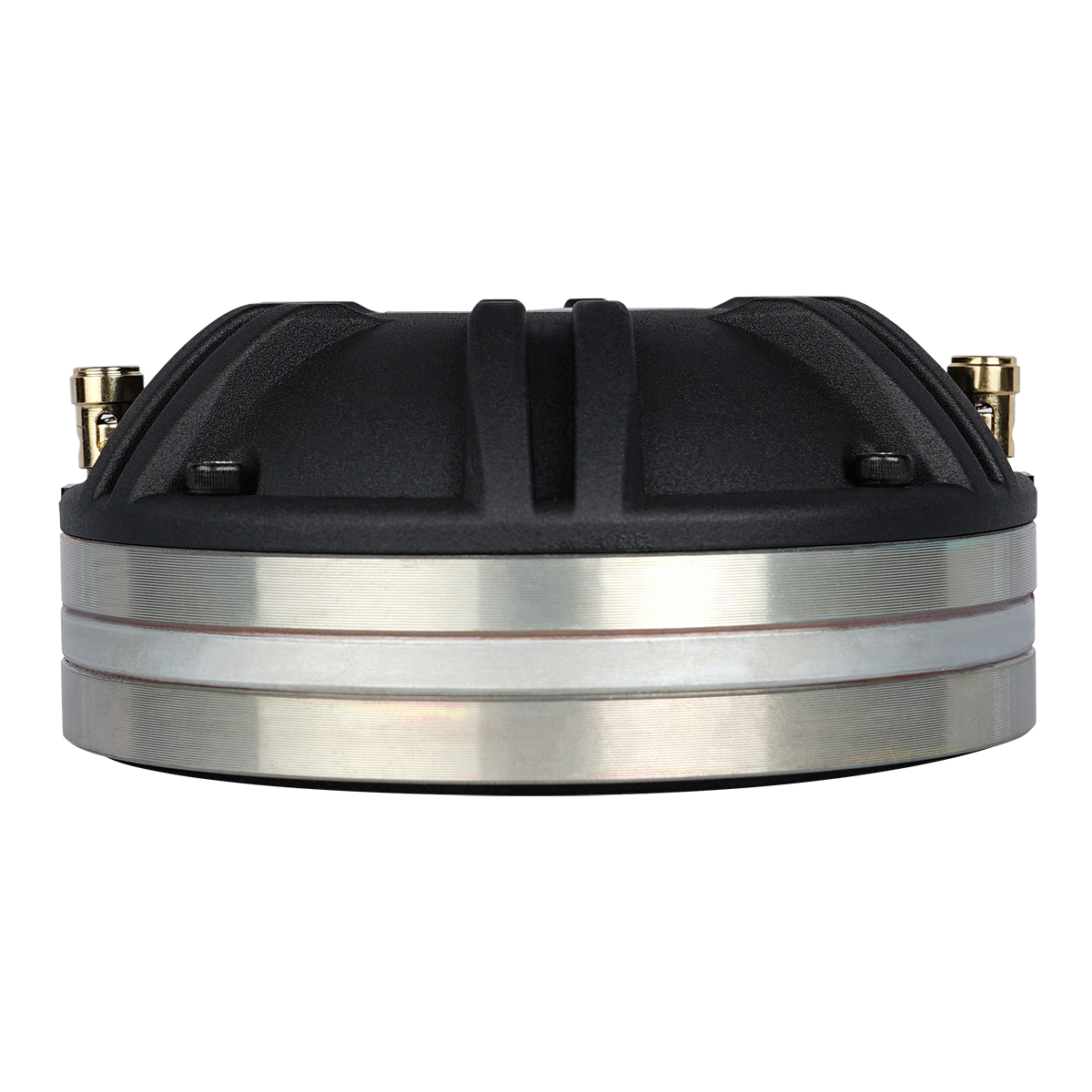

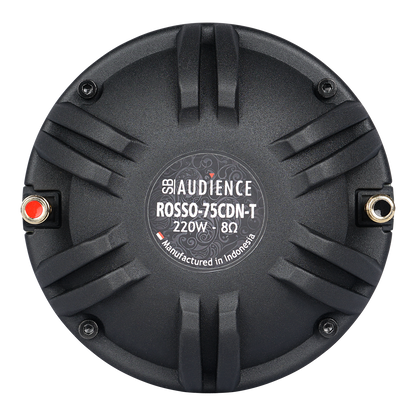

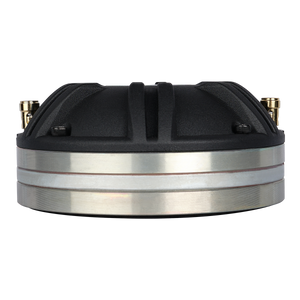

1.4" 110W Neo Compression Driver ROSSO-75CDN-T

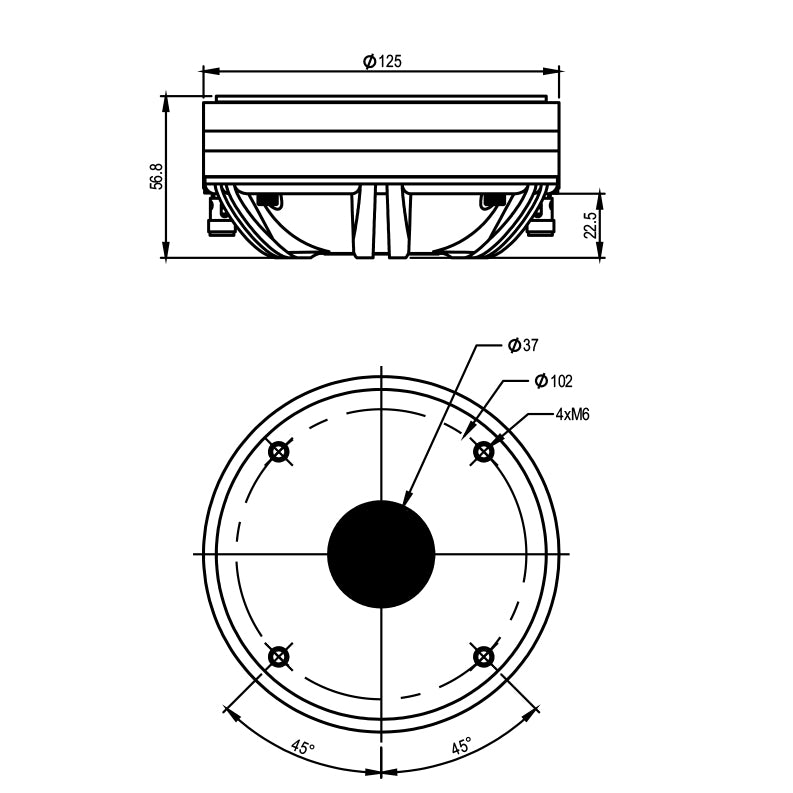

A high output 1.4 inch (35.6mm) throat 8 ohm high frequency compression driver for sound reinforcement applications from SB Audience featuring a light weight Neodymium magnet and a Titanium diaphragm for high sensitivity. A really smooth frequency response with a minimum recommended crossover frequency of 1kHz. These professional drivers are made to exacting standards with very high quality materials to achieve excellent reliability. Standard four M6 mounting holes on a 102mm diameter circle.
View the datasheet

• Model ROSSO 75CDN-T

• Suitable flare H280
• 110 watts AES power handling
• 110dB 1W/1M
• 75mm dia titanium diaphragm
• Neodymium motor assembly
• Copper cap for minimum intermodulation distortion
• Smooth yet detailed and dynamic character
• High sensitivity and linear frequency response
• Advanced voice coil with flat copper clad aluminium wire
• Extended frequency response and bandwidth

• Replacement diaphragm available
