1.35" High Frequency Horn
replacement pa horn driver and flare
1.35" High Frequency Horn
1.35" High Frequency Horn
1.35" High Frequency Horn

1.35" High Frequency Horn

Brand

MCPro

SKU

53-1230

In Stock :

3

Variant: Default Title - Inventory: 3


Quantity must be 1 or more
Sale price
$80.00
Regular price
$80.00

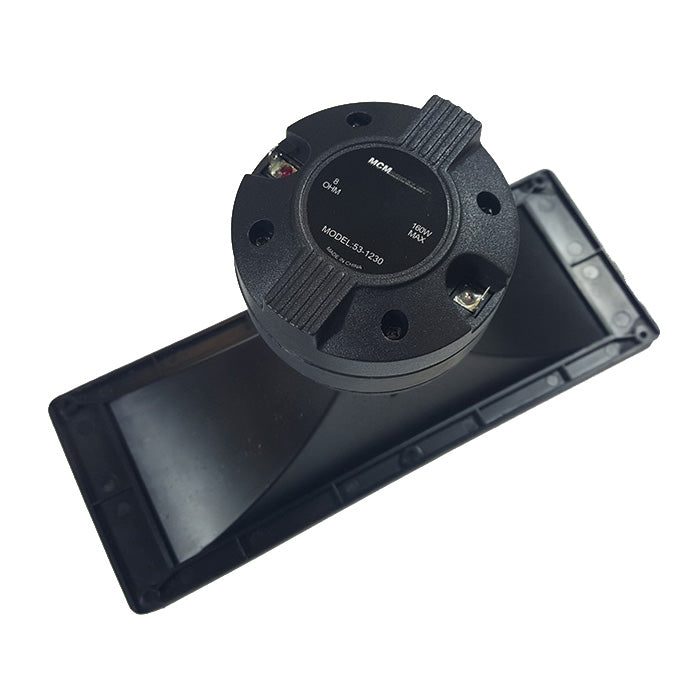

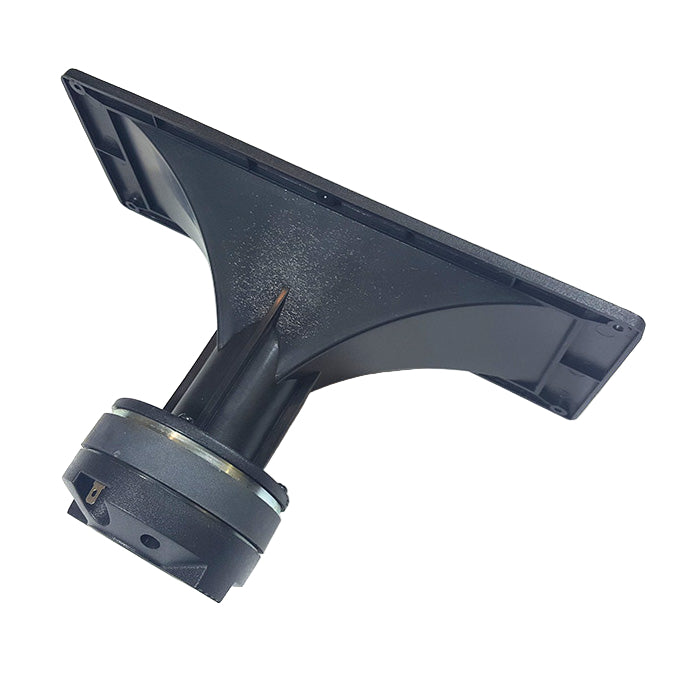

A complete high frequency horn assembly with a 160 watt (peak) 8 ohm titanium drive unit. The horn features strong ABS construction and a 15oz 1.35" magnet structure. Connection via 6.35mm tabs or solder. Recommended minimum crossover frequency is 1.5kHz. (It is recommended that the driver unit is supported within the speaker cabinet).

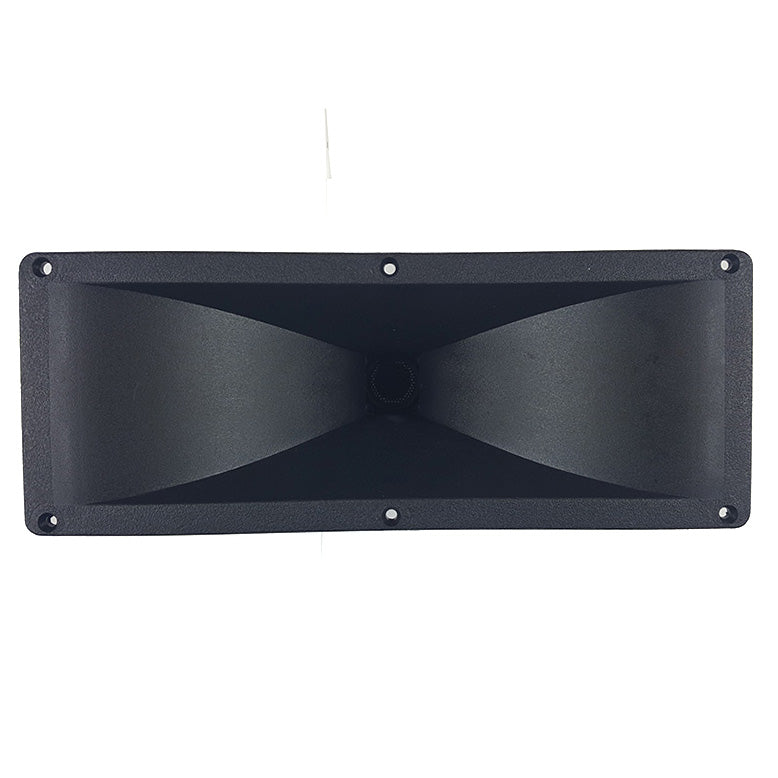

  • Outside flare dimensions = 290x110mm
  • Cut out in cabinet = 245x90mm
  • Mounting holes = 268x98mm
  • Depth behind panel = 180mm
  • Outside diameter of drive unit = 93mm
  • 8 ohms, 160W peak power
  • 103dB @ 1W/1M

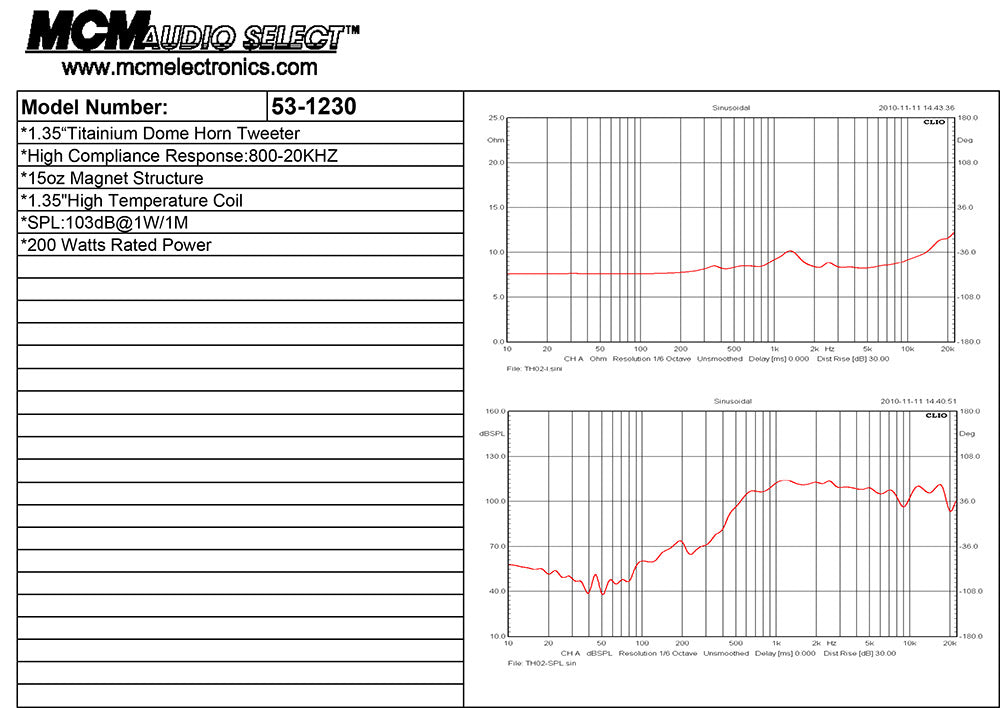

  • Frequency response = 800Hz to 20kHz
