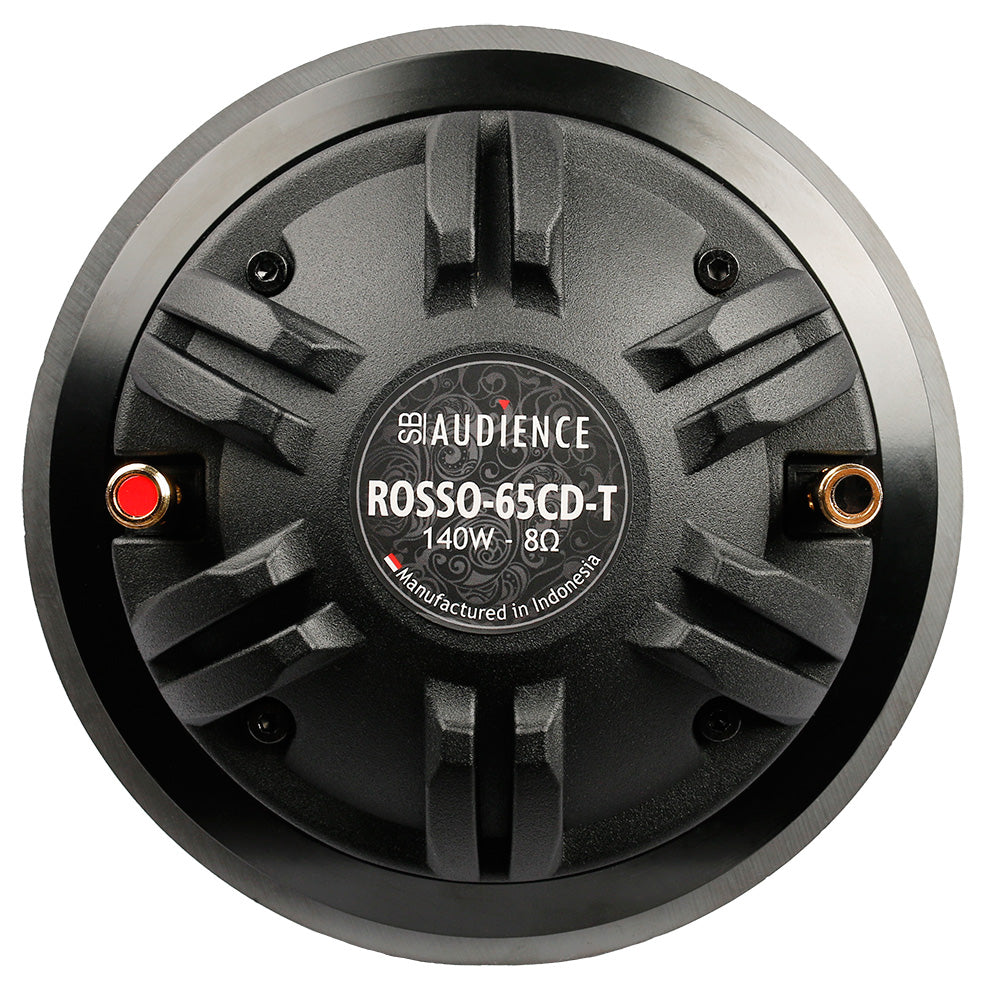

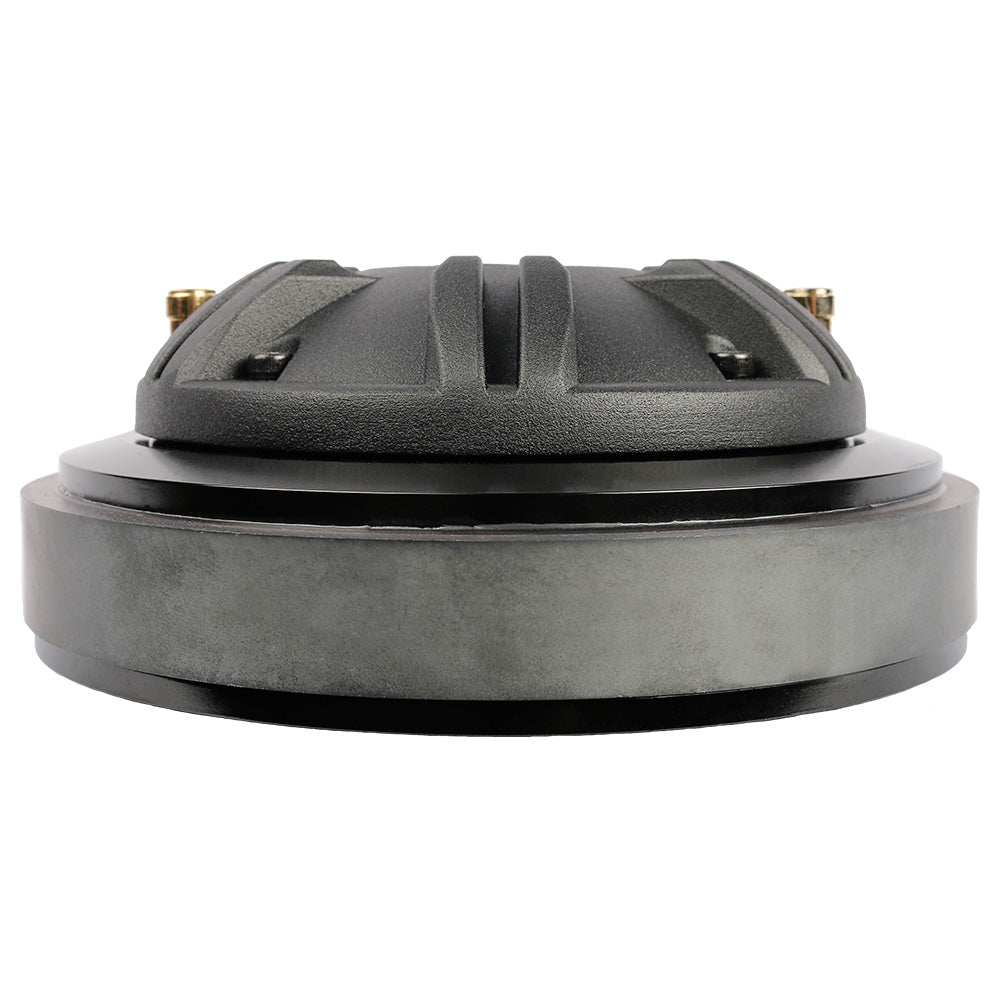

1.4" 70W Compression Driver ROSSO-65CD-T

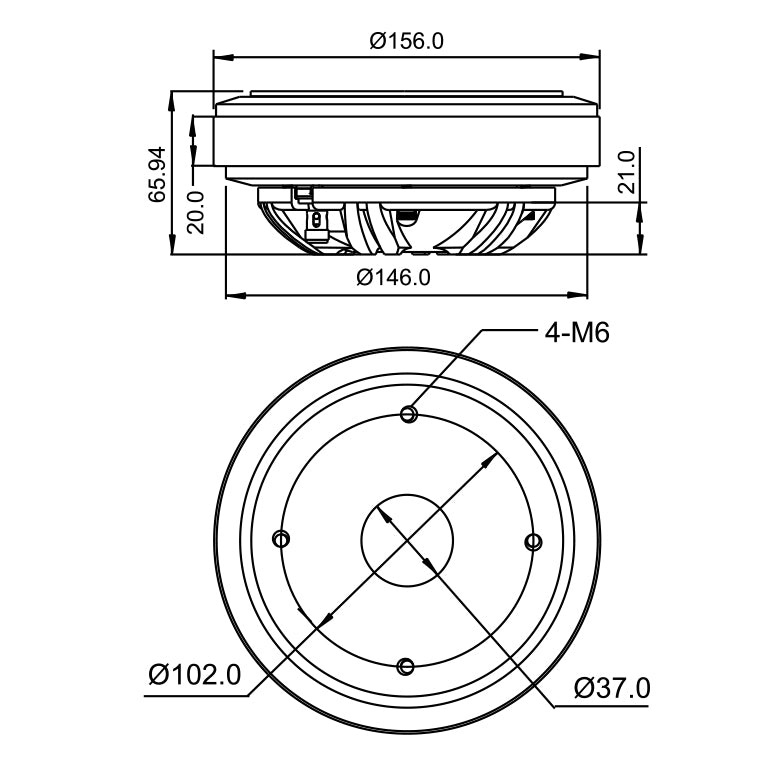

A 1.4 inch (35.6mm) throat 8 ohm high frequency titanium compression driver with a 65mm voice coil from SB Audience.  This driver is a good choice for vocal foldback speakers and midrange bins because of it's high sensitivity in the upper vocal range. Pair with the SBA H280 constant directivity 1.4" throat horn for a very loud high frequency PA assembly. All SBA drivers are carefully manufactured with very high quality materials to achieve excellent reliability. Four M6 mounting holes on a 102mm diameter circle.
View the datasheet

• Model ROSSO 65CD-T
• 70 watts AES power handling
• 140 watts peak
• 108dB 1W/1M
• 65mm dia titanium diaphragm
• Copper cap for reduced distortion and extended HF response
• Extended upper frequency response
• Advanced ferrite motor assembly
• High sensitivity and linear frequency response
• Advanced voice coil with flat copper clad aluminium wire

• Replacement diaphragm available
