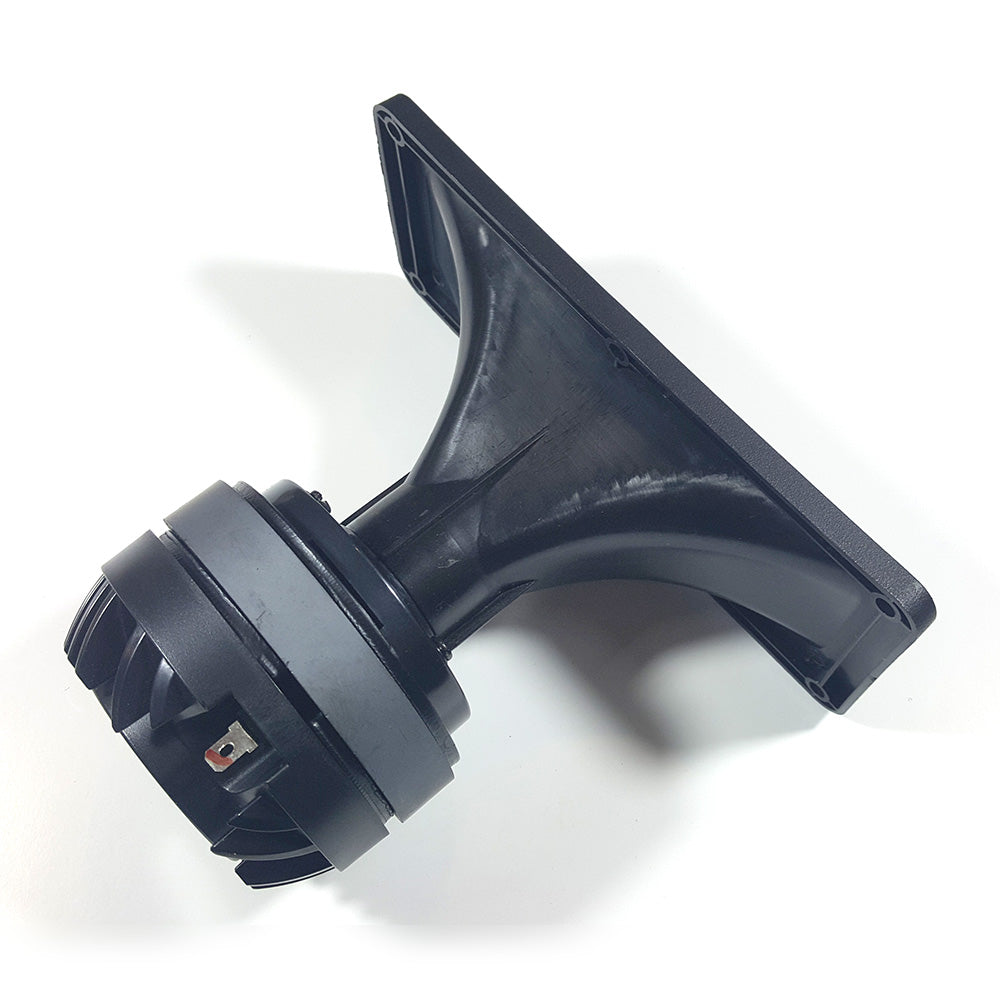

A complete high frequency horn assembly with a 160 watt (peak) 8 ohm titanium drive unit. The horn features strong ABS construction and a 15oz 1.35" magnet structure. Connection via 6.35mm tabs or solder. Recommended minimum crossover frequency is 1.5kHz. (It is recommended that the driver unit is supported within the speaker cabinet).
- Outside flare dimensions = 290x110mm
- Cut out in cabinet = 245x90mm
- Mounting holes = 268x98mm
- Depth behind panel = 180mm
- Outside diameter of drive unit = 93mm
- 8 ohms, 160W peak power
- 103dB @ 1W/1M
- Frequency response = 800Hz to 20kHz
